Valve stem seals ensure that the valve stems remain lubricated without allowing too much engine oil to enter the combustion chamber. When the seals harden or begin to leak, the MINI may increasingly consume oil and produce blue exhaust smoke under certain conditions.
What do valve stem seals do?
The valves move inside their guides and require a small amount of oil for lubrication. The valve stem seals control this oil film and keep excess engine oil out of the combustion chamber.

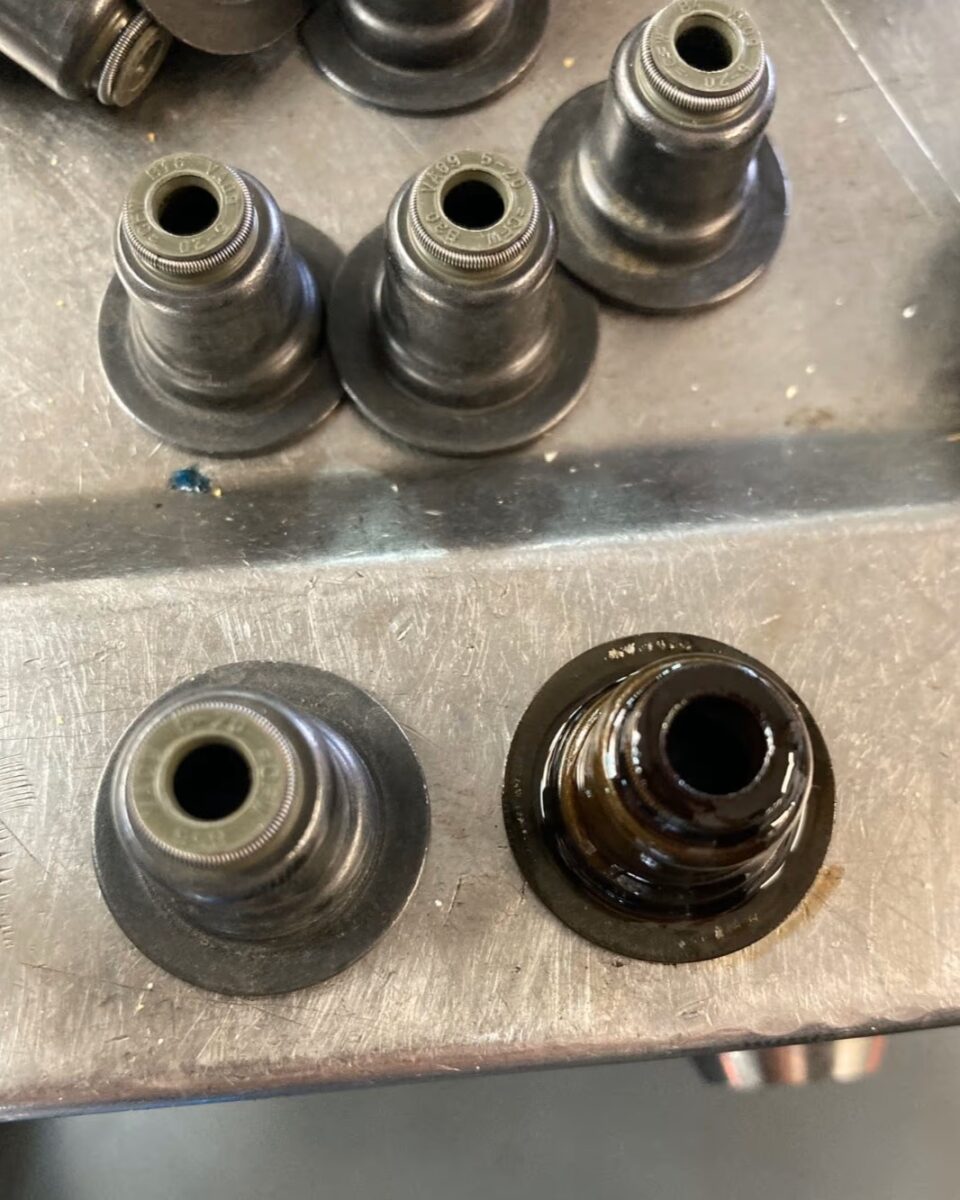

Age, heat, oil vapour and deposits can cause the sealing material to harden. The sealing lips then no longer sit correctly around the valve stem, allowing more oil through than is required for lubrication.
Typical signs of leaking valve stem seals
- Blue smoke when starting: After the vehicle has been standing for some time, oil may collect around the valves and briefly burn when the engine is started.
- Smoke after extended idling: A cloud of blue smoke when subsequently accelerating is a typical indication that oil is entering the combustion chamber through the valve guides.
- Increased engine oil consumption: The oil level drops without a correspondingly large external oil leak being visible.
- Oil-contaminated spark plugs or misfires: Burning engine oil can contaminate the spark plugs and contribute to rough engine operation.
- Abnormal exhaust-emission readings: An increased amount of oil in the combustion process may become apparent during an emissions test or through a fault message.
These symptoms are consistent with worn valve stem seals but may also have other causes. Possible alternatives include problems with the crankcase ventilation system, turbocharger, piston rings or other engine components. We therefore assess the symptoms and vehicle condition before scheduling the repair.

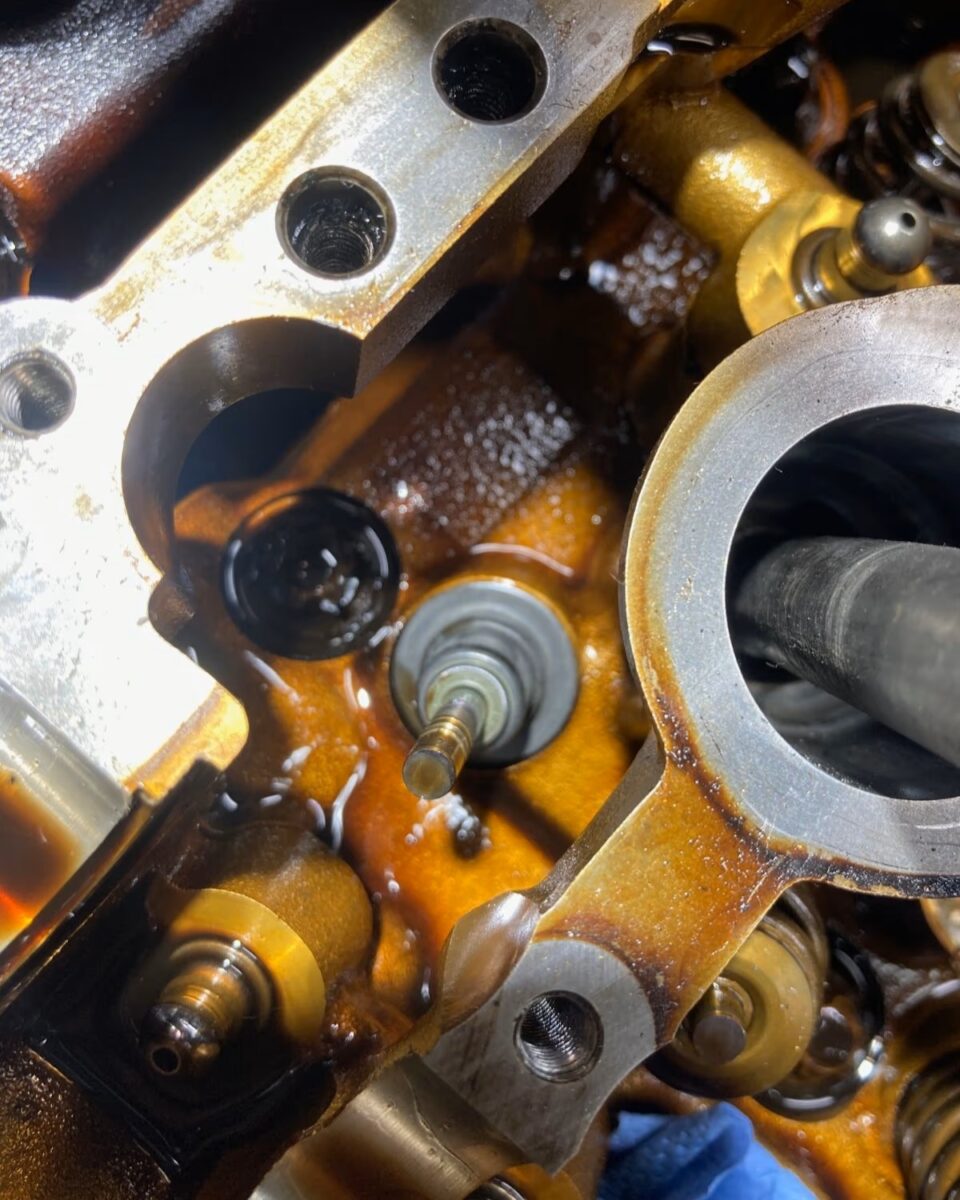

Replacing valve stem seals with the cylinder head fitted
The cylinder head remains fitted during this repair. We remove the components required to access the valve stem seals, replace the seals and reassemble the engine using the necessary gaskets and installation parts.
- Removal of the engine components required to access the valve stem seals
- Replacement of the valve stem seals with the cylinder head fitted
- Inspection of accessible components for visible damage or unusual wear
- Professional reassembly using the gaskets and installation parts required for the work
- Engine oil change after completing the work
- Final functional check of the engine
If the work reveals signs of worn valve guides, damaged valves or further cylinder-head problems, replacing the seals alone may not be sufficient. We discuss any necessary additional work with you before further costs are incurred.
Combining the work with timing chain replacement
On suitable petrol engines, valve stem seal replacement can be combined with a timing chain replacement. As some of the same components must already be removed for both jobs, the additional labour is lower than for two separate workshop appointments.
The timing chain is a known wear item, particularly on petrol engines from the second MINI generation. We therefore recommend assessing whether replacement at the same time is worthwhile based on the mileage, maintenance history and condition. If the timing chain has recently been replaced professionally and this is documented, it does not need to be renewed again solely because the valve stem seals are being replaced.
Time required and costs
Depending on the engine and the actual amount of work required, you should allow approximately half to one full workshop day for replacing the valve stem seals.
| Work included | 1st generation R50–R53 | 2nd generation R55–R61 | Other MINI models |
|---|---|---|---|
| Valve stem seals including engine oil change | 699 € | 699 € | on request |
| With timing chain replacement as a combined service* | 1.299 € | 1.299 € | on request |
* The combined service applies to suitable petrol engines and represents an additional 600 € compared with valve stem seal replacement alone. Additional repairs and components required because of further damage are not automatically included.
Have the valve stem seals on your MINI replaced
Please include the complete vehicle identification number, mileage and approximate engine oil consumption in your appointment request. Also describe when the blue smoke appears and whether any work has already been carried out on the timing chain, cylinder head, turbocharger or crankcase ventilation system. This helps us assess your MINI and the symptoms more accurately.
